Features

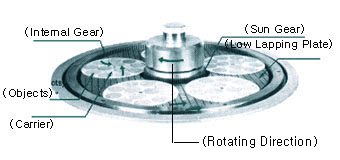

  1. The upper and lower lapping plate rotate respectively in opposite direction. The crrier inserted between upper and lower lapping plates rotates in the same direction as lower lapping plate while revolving, thus, the objects in the carrier are given movements to four directions. Further, as the rotation ratio of upper and lower lapping plates and carrier are arranged in order to give equal lapping to both surfaces simultaneously, a very high lapping precision is acquired in short processing time. Also, as the carrier can work smoothly, not only extremely thin objects can be processed (FSP-5), but abrasion of carrier, internl gear and sun gear is minimised.
  2. With pressure reducing devices and soft starter, the possibility of producing defective products incident to breakage is reduced to the minimum as they elminate unnecessary load and shock at the time of starting and terminating operation.
  3. The thickness of objects for lapping can be controlled easily with timer and counter.
  4. With proper rotaing speed obtained by built-in stepless speed reducer, all objects can be processed efficiently.
  5. By use of dressing carriers, the parallelism of the upper and lower lapping plates can be maintained easily.
Recommended products
optical glass.ceramic .quartz crystal.sapphire .CCD filter.MGO
.PZT.GLASS HDD.oil seal.trimer ceramic.
.FILTER.GaAs LiNbO3.sapphire GGG.PTC ceramic.


SPEC   \   TYPE
TLP-4BL
TLP-5BL
Diameter of plate 265¥õx 114¥õx 25t 285¥õx 110¥õx 25t 386¥õx 155¥õx 30t 635¥õx 240¥õx 30t 635¥õx 240¥õx 30t
Max size product 70¥õ 80¥õ 110¥õ 180¥õ 180¥õ
Diameter of carrier 99.6¥õ (P.C.D) 105.8¥õ (P.C.D) 139.3¥õ (P.C.D) 228.5¥õ (P.C.D) 228.5¥õ (P.C.D)
Number of carrier 5pcs 5pcs 5pcs 5pcs 5pcs
Lower plate rpm 0~100rpm 0~100rpm 0~60rpm 0~60rpm 0~60rpm
Main motor 0.75kw 0.75kw 1.5kw 2.2kw 3.7kw
Net weight 400kg 450kg 1000kg 1800kg 1830kg

SPEC   \   TYPE
TLP-12BP
TLP-15BL
TLP-15BP
TLP-18BL
Diameter of plate 780¥õx 310¥õx 35t 780¥õx 110¥õx 35t 1022¥õx 346¥õx 47t 1022¥õx 240¥õx 40t 1196¥õx 395¥õx 50t
Max size products 220¥õ 220¥õ 310¥õ 310¥õ 420¥õ
Diameter of carrier 283.6¥õ(P.C.D) 283.6¥õ(P.C.D) 384¥õ(P.C.D) 384¥õ(P.C.D) 450¥õ(P.C.D)
Number of carrier 5pcs 5pcs 5pcs 5pcs 5pcs
Lower plate rpm 0~60rpm 0~60rpm 0~56rpm 0~56rpm 0~56rpm
Main moter 3.7kw 5.5kw 7.5kw 11kw 11kw
Net weight 2500kg 2580kg 4200kg 4250kg 7000kg

SPEC   \   TYPE
TLP-18BP
TLP-20BL
TLP-20BP
TLP-22BL
TLP-22BP
Diameter of plate 1196¥õx 395¥õx 40t 1364¥õx 436¥õx 50t 1364¥õx 436¥õx 45t 1486¥õx 482¥õx 55t 1486¥õx 482¥õx 50t
Max size products 420¥õ 450¥õ 450¥õ 480¥õ 480¥õ
Diameter of carrier 450¥õ(P.C.D) 509¥õ(P.C.D) 509¥õ(P.C.D) 549¥õ(P.C.D) 549¥õ(P.C.D)
Number of carrier 5pcs 5pcs 5pcs 5pcs 5pcs
Lower plate rpm 0~56rpm 0~56rpm 0~56rpm 0~50rpm 0~50rpm
Main moter 15kw 15kw 22kw 22kw 30kw
Net weight 7100kg 8500kg 8600kg 10000kg 10100kg

SPEC   \   TYPE
TLP-24BL
TLP-24BP
TLP-28BL
TLP-28BP
REMARK
Diameter of plate 1642¥õx 544¥õx 60t 1652¥õx 544¥õx 50t 1965¥õx 750¥õx 60t 1975¥õx 740¥õx 50t
Max size products 550¥õ 550¥õ 660¥õ 660¥õ
Diameter of carrier 607.4¥õ(P.C.D) 607.4¥õ(P.C.D) 711.4¥õ(P.C.D) 711.4¥õ(P.C.D)
Number of carrier 5pcs 5pcs 5pcs 5pcs
Lower plate rpm 0~50rpm 0~50rpm 0~45rpm 0~45rpm
Main moter 22kw 30kw 30kw 37kw
Net weight 13500kg 12000kg 16000kg 14000kg

*L:lapping machine P:polishing machine
