Features

  1. You can easily keep good surface precision of lapping plate as the machine is self-control type
  2. You can change the speed without step by remote control even during operation.
  3. You can set lapping time freely by use of timer.
  4. You can make polishing process by changing lapping plate
  5. You can select from many sorts of options to make high precision lapping of varied sorts of parallel-flat products.

Recommended products

  IC Phote mask
Siliconwafers
Ceramics
Piezo electric ceramic
Sapphire GGG
Spacers
Ferrite
Filter Glass
Gauge Block

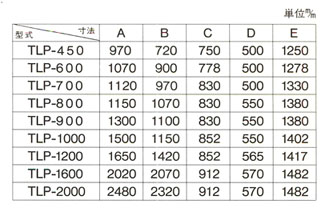

SPEC   \   TYPE TLP-450 TLP-600 TLP-700 TLP-800 TLP-900 TLP-1000 TLP-1200 TLP-1600 TLP-2000
Diameter of plate 450X40 610X55 700X25 800x55 900x55 1000x55 1200x55 1600x65 2000x75
Adjust ring(I/DxH) 170X65 250X75 282X75 303x75 353x75 403x80 423x80 655x100 805x120
Work ring number 3 3 3 3 3 3 3 3 3
Main motor 400W 0.75kw 1.5kw 1.5kw 2.2kw 3.7kw 3.7kw 11kw 15kw
Plate RPM 0~100 0~80 0~80 0~65 0~55 0~55 0~45 0~40 0~40
Net weight 480kg 980kg 1130kg 1220kg 2400kg 2750kg 2950kg 4300kg 5550kg
